Fully Integrated Compact All-in-One POS System

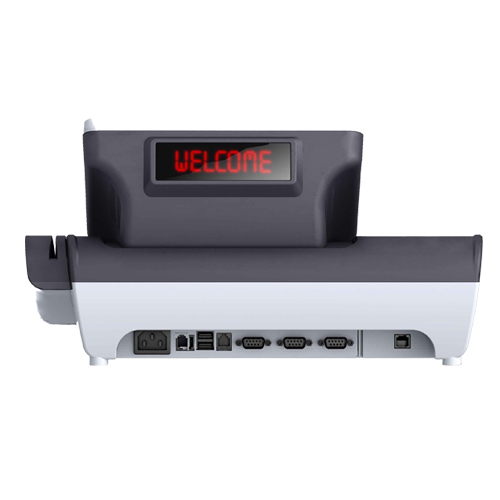

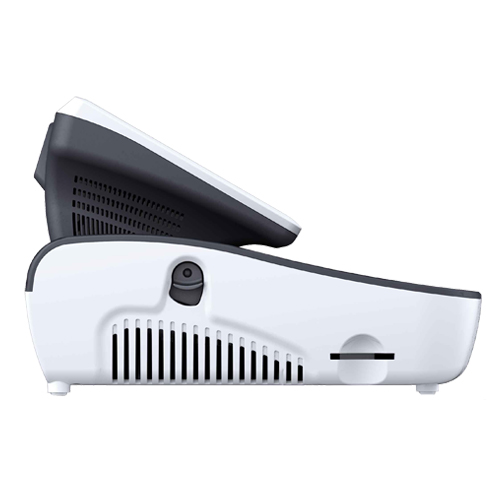

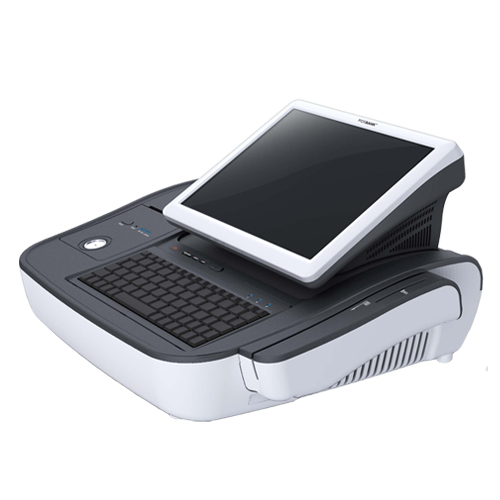

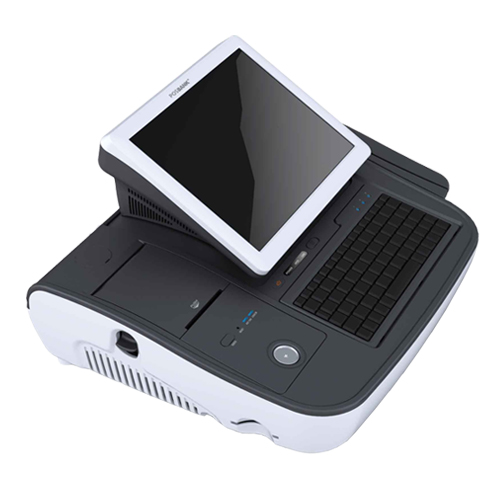

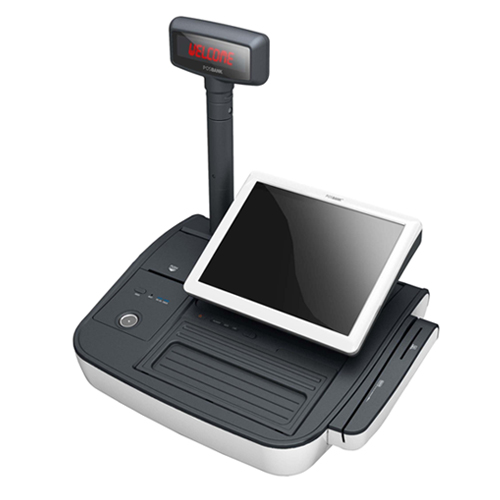

Desktop Style POS System miniO II Point of Sale System miniO II with 2 inch Thermal Printer Intelligent POS System miniO II Rear view of POS Terminal miniO II
View Larger

miniO II

  • Fully Integrated Compact All-in-One POS System

  •  10.1" LCD Touch Screen
     2" integrated Jam-Free Printer (Auto-cutter)
     HDD Data Storage Compatibility
     Newly Designed Flat Desktop Style
     Choice of Color Available on Request

Share |

  •

    Fully Integrated Compact All-in-One POS System

    The innovative design and brand new 10.1" monitor of the miniO® II brings extensive performance to the retail and hospitality segments. Built with user interface in mind, it offers a fast and easy way to manage your business effectively. With data input capabilities via mini keyboard, PLU or touch-screen, 3 different customer display units, Dallas key (optional) and a built-in 2" thermal printer, the miniO® II gives you whatever you expect from your POS system. Powered by Intel® Atom™ processor, the miniO® II ensures quieter and stress-free usage.












    Integrated Printer



    Customer Display



    Multi-reader


    - 2" Thermal Jam-Free Receipt Printer
    - Up 200mm/sec, auto cutter    		- Real or Pole type
    - 16 Columns × 2 Lines (optional)    		- Magnetic Stripe Reader (MSR)
    - Smart Card Reader (SCR)


    Keyboard



    SD(CF) Card Socket



    - Standard mini keyboard
    - Programmable keyboard : 55 key (optional)



    - Data Backup














    Certification of AnyShopII POS Terminal

    Qualification : CE, FCC, KC, RoHs, ISO9001, ISO14001
  • miniO II D25
    CPU Intel Atom Processor D2550 (1MB Cache, 1.86 GHz, Dual Core for Cedarview-D)
    Chipset Intel NM10
    Storage SATA 2 (3Gb/s) 2.5 inch HDD or SSD, Support AHCI
    Memory DDR3-1066MHz SODIMM 2GB (MAX. 4GB)
    Graphic Integrated Intel GMA HD 3650
    Printer 2" thermal printer(24V) 200mm/sec max (Auto cutter)
    Display 10.1" LED Backlight TFT-LCD 250 cd/㎡ (1024 x 768 Resolution) / 5-wired Resistive Touch
    Internal I/O
    Parallel 1 Port (reserved for internal printer)
    USB 3 Ports (reserved for touch controller, SCR EMV card, MSR controller)
    Serial port COM 5 (reserved for cash drawer port) & COM 6 (reserved for MSR)
    Display port VGA & COM 4 (reserved for CDP)
    Extension slot Mini PCIe
    Primary display 24bit LVDS
    External I/O
    USB Rear 4 (USB 2.0 x 4 ports)
    PS/2 1 Port (reserved for Keyboard & Mouse)
    Serial port COM 1 ~ 3 with 5V/12V power output on 9pin
    LAN Realtek RTL 8111E Ethernet Controller
    Audio Realtek ALC 892 / Line-out, Mic-in
    Display port VGA x 1 port
    Options
    MSR Comply with ISO 7811, Support 1 & 2 & 3 track
    Side USB 1 Port (USB 2.0)
    SCR IC card reader, EMV level 1
    Dallas Dallas I-button reader
    Customer display Rear or Pole or Dual side type (LCD 16 x 2, VFD 20 x 2)
    Keyboard Mini standard keyboard or Programmable keyboard : 55 Key
    WiFi Mini PCIe for wireless LAN
    SD(CF) CARD SD/CF card reader
    Operating Temperature 0 ℃ ~ 40 ℃ at 10% ~ 80% humidity
    Storage Temperature -20 ℃ ~ 60 ℃ at 10% ~ 80% humidity
    Certification CE, FCC, KC
    Power Adaptor 24V, 2.5A
    OS Support Windows XP/Vista, Windows 7, POS Ready 2009/7
    Dimension (W x H x D) 393 x 200 x 325(mm), 15.4 x 7.8 x 12.7(inch)
    *Specifications may differ by region and change without prior notice.
