Gun-type handheld CCD Scanner.
Handheld CCD scanner, barcode handheld readers Gun Type Handheld CCD Scanners, POS peripherals CCD Barcode handheld Scanners & Readers
View Larger

Handheld Scanner

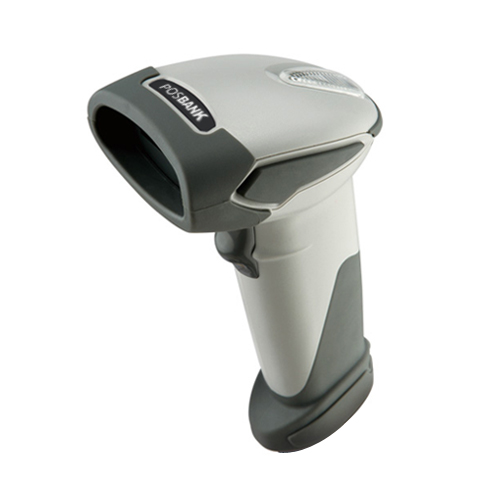

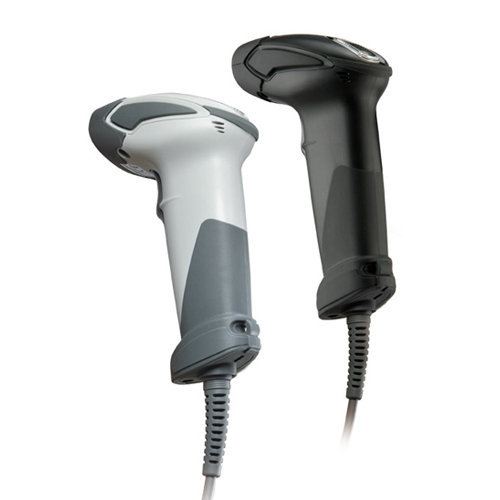

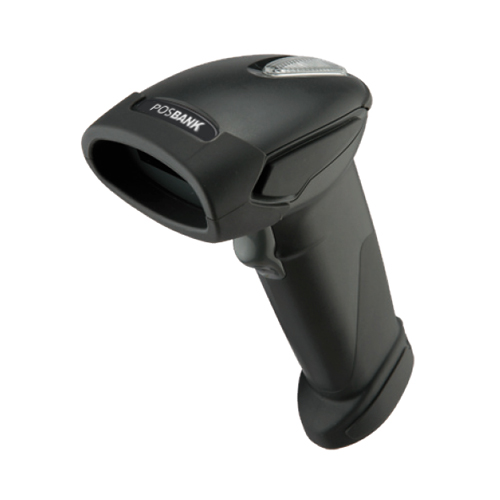

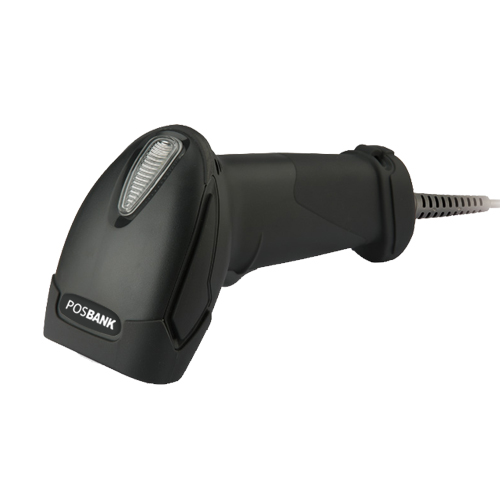

  • Gun-type handheld CCD Scanner.
  • • 617 nm visible red LED
    • 330 scans per second
    • 2500 pixels CCD
    • 20 – 320 mm (UPC/EAN 100%, PCS=90%)
    • Dimension : 147 × 62 × 114.5 mm (device only)
Share |

  • Handheld Scanner

    Gun Type Handheld CCD Scanner


    This scanner is a gun type rugged barcode CCD/Laser scanner with a state of the art scan engine.
    Featuring a superb scanning speed and able to withstand 1.5 meter drop, it is ideal for manufacturing and
    logistic sectors.

    This scanner is an advanced handheld CCD scanner with 100,000 light resistance ability and rugged gun type form factor, ideal for tough working conditions and rough operation.
    Decoding with speed and accuracy, it is made to streamline your business and improve work efficiency.

    • Proprietary Ultrascan decoding technology
    • 32 bit micro processor unit
    • GS1 DataBar decoding capability
    • Analog image capture technology
    • 1.5 M drop resistance
  • Handheld Scanner
    Light Source 617 nm visible red LED
    Optical System Linear CCD array
    Imager Sensor 2500 pixels CCD
    Depth of Field 20 - 320 mm (UPC/EAN 100%, PCS=90%)
    Scan Angle 42°
    Reading Angle Pitch: ±75°; Skew: ±60°; Roll: ±25°
    Scan Rate 330 scans per second
    Min. Bar Width 0.07 mm (3mil) (Code 39, PCS=90%)
    Print Contrast Min. 20% @ UPC/EAN 100%
    Reading Indicator Beeper and LED; Vibrator (Optional)
    Programmable Operation Beeper tone & volume
    System Interfaces Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
    Dimensions 147 × 62 × 114.5 mm (device only), 176.4 × 101.6 × 133.6 mm (with cradle)
    Weight 120 g (device only)
    Interface Cable Field replaceable, standard 2M straight
    Input Voltage 5 VDC ± 5%
    Power Consumption 0.6 watts
    Operating Temperature 0 ℃ ~ 40 ℃ at 10% ~ 80% humidity
    EMC CE & FCC DOC compliance, VCCI, BSMI
    Safety IEC 60825-1 Class 1 LED
    Storage Temperature -20 ℃ ~ 60 ℃ at 10% ~ 80% humidity
    Humidity 5% - 95% RH (non-condensing)
    Light Levels 0-100,000 Lux (fluorescence)
    Drop Durability Designed to withstand 1.5M drops
    1D Barcodes UPC/EAN/JAN, ISBN/ISSN, Code 39, Codabar, Code 128, Code 93, Interleave 2 of 5, MSI/Plessy, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 11, GS1 DataBar, Telepen
    2D Barcodes PDF 417 (Optional)
