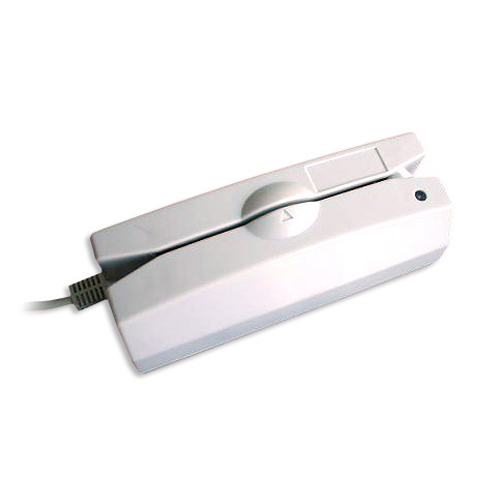

Magnetic Card Reader

Main Features
• Manual Swipe operation, bi-direction
• Read both normal and high coercivity card (300-4000 Oe)
• High Performance, High Reliability
• Single, dual and triple track model
• Comply with ISO 7812, IBM standards , AAMVA, JIS-2
• Support multi-country code settings
• Support programmable MSR setting for the header, tailor, separator, suffix and prefix, track sequence (using Matrix Maker )
• with metal weigh for balancing during swiping
• Life of head Approx 500,000 passes under normal ideal laboratory environment
• Error rate Less than 0 .5% under the normal ideal laboratory environment
• USB, PS/2 and RS232 are available.
• USB exists as a HID device, no need to install any driver.

Technical Specification
[Reader Performance]
• Track 1 : 210 BPI with max 76 characters
• Track 2 : 210 BPI with max 107 characters or 75 BPI with max 37 characters
• Track 3 : 210 BPI with max 107 characters
• Card swipe speed : 10 to 100 cm/s

Available Configuration
• Dual Track : Track 1 & 2 or Track 2 & 3
• Three Track : Track 1, 2 & 3
• Support USB, PS/2 interface
• Support multi-country code settings

Environment Adaptability
[Card Operating Speed]
TEST CARD/SPEED (inch/sec)
Normal : 5 - 55 ips
Jitter : 5 - 50 ips
Low Amplitude : 5 - 50 ips
• Test card thickness is 0. 76mm +/- 0.08mm (0 030" +/- 0 003")
• Reliable to re ad Jitter card of magnetic stripes encoded with bit cell length variations within +/-12% as defined in ISO 7811
• Reliable to re ad Low Amplitude card of magnetic stripes encoded at 60% or more of the amplitude as defined in ISO 7811

[Others]
• Operating Voltage : 5VD +/- 5%
• Operating Current : less than 100mA
• Operation Temperature : -1 0-50'C
• Storage Temperature : -30- 70'C
• Operating Humidity : 10-85% RH
• Storage Humidity : 10-90% RH
• Dimensions : 135 x 47x 45mm
