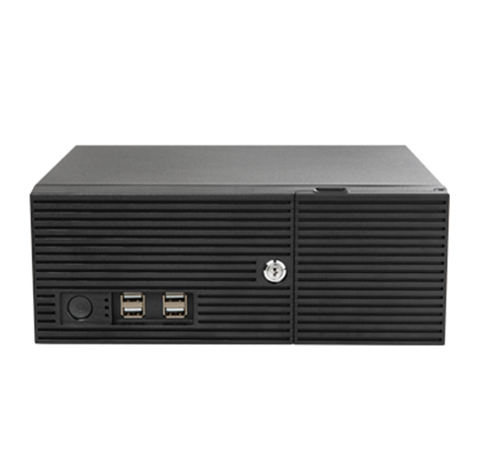

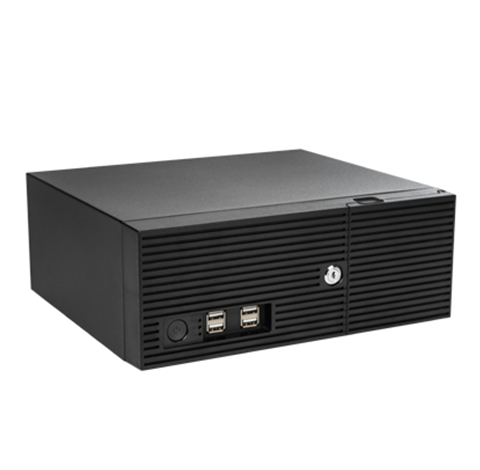

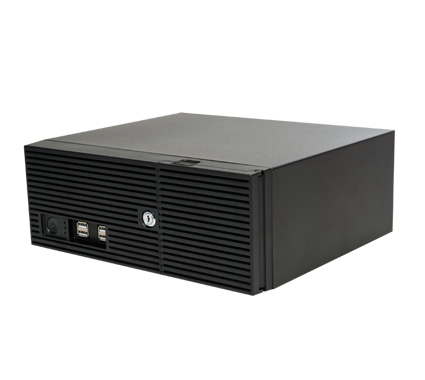

High-Performance POS Terminal or Server
Built to Perform as a POS Terminal or a Server
The retail-hardened BOXPOS, offers maximum performance and extreme durability, enabling it to use as a POS terminal or a server. The BOXPOS boasts of a stylish design, small form factor, an industrial-grade motherboard and multiple I/O ports. The features and functionality of the BOXPOS makes it an ideal choice for box-type PC POS.
Compact Design
Raid Capability
System Expansion
- Slim and space-saving
- Fast processing and data backup

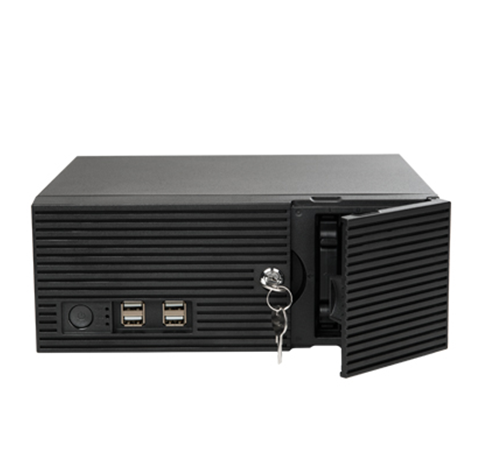

- Up to 4 HDD (SSD) available
- Multiple I/O ports (option)
Dual Monitor Available
*Design, features and specifications subject to change without notice. Screen images simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the Specifications tab for a complete list of features by model.
| BOXPOS Q SERIES | ||
| CPU | uPGA988 for 2nd and 3rd Generation Intel® Core™ i7/i5/i3, Intel® Pentium, Intel® Celeron Processors | |
| Chipset | Intel QM77 | Intel HM76 |
| Storage | SATA 3 (6Gb/s) 2.5 inch HDD or SSD (Max. 2 Optional), Support AHCI (SSD: 64GB or 32GB / HDD: 320GB) | |
| Memory | DDR3-1600MHz SODIMM Default 2GB (MAX. 8GB) | |
| Graphic | Integrated Intel GFX | |
| AMT | Support iAMT 8.0 | - |
|
External I/O | ||
| USB | Rear 6 (USB 3.0 x 4 ports, USB 2.0 x 2 ports) | Rear 4 (USB 3.0 x 2 ports, USB 2.0 x 2 ports) |
| PS/2 | 1 Port (reserved for Keyboard & Mouse) | |
| Serial port | COM 1 ~ 3 with 5V/12V power output on 9pin | |
| LAN | Gigabit Ethernet x 2 ports 1x Intel Gigabit LAN with iAMT 8.0(Intel 82579LM) 1x Intel Gigabit LAN with (Intel 82583V) |
1 port x Intel Gigabit LAN with (Intel 82583V) |
| Audio | Realtek ALC 892 / Line-out, Mic-in | |
| Display port | VGA x 1 port | |
|
Options | ||
| Front USB | 4 Ports (USB 2.0 x 4 ports) | |
| Back up battery | Smart battery (supports up to 1 packs) | |
| Serial port | COM 4, COM 5 (support DB9, shared with cash drawer port), COM 6 | |
| RAID storage | 2.5 inch HDD or SSD (Max. 4) RAID configuration (0, 1, 5, 10) |
- |
| Cash drawer port | 1 Port | |
| Parallel port | 1 Port | |
| WiFi | Mini PCIe for wireless LAN | |
| Display port | VGA x 1 port or HDMI x 1 | |
| Expandable I/O | Expandable I/O Ports (Customize) | |
| Powered USB x 4 ports (5V/12V/24V) | ||
| Operating Temperature | 0 ℃ ~ 40 ℃ at 10% ~ 80% humidity | |
| Storage Temperature | -20 ℃ ~ 60 ℃ at 10% ~ 80% humidity | |
| Certification | CE, FCC, KC | |
| Power | Adaptor 24V, 6A | |
| OS Support | Windows 7, Windows 8, POSReady 7 | |
| Dimension (W x H x D) | 280 x 78 x 355(mm), 11 x 3 x 13.9(inch) | |
| BOXPOS D25 | |
| CPU | Intel Atom Processor D2550 (1MB Cache, 1.86 GHz, Dual Core for Cedarview-D) |
| Chipset | Intel NM10 |
| Storage | SATA 2 (3Gb/s) 2.5 inch HDD or SSD (Max. 2 Optional), Support AHCI (SSD: 64GB or 32GB / HDD: 320GB ) |
| Memory | DDR3-1066MHz SODIMM 2GB (MAX. 4GB) |
| Graphic | Integrated Intel GMA HD 3650 |
|
External I/O | |
| USB | Rear 4 (USB 2.0 x 4 ports) |
| PS/2 | 1 Port (reserved for Keyboard & Mouse) |
| Serial port | COM 1 ~ 3 with 5V/12V power output on 9pin |
| LAN | Realtek RTL 8111E Ethernet Controller |
| Audio | Realtek ALC 892 / Line-out, Mic-in |
| Display port | VGA x 1 port |
|
Options | |
| Front USB | 4 Ports (USB 2.0 x 4 ports) |
| Back up battery | Smart battery (supports up to 1 packs) |
| Serial port | COM 5 (support DB9, shared with cash drawer port) |
| Cash drawer port | 1 Port |
| Parallel port | 1 Port |
| WiFi | Mini PCIe for wireless LAN |
| Display port | VGA x 1 port or HDMI x 1 |
| Expandable I/O | Expandable I/O Ports (Customize) |
| Powered USB x 4 ports (5V/12V/24V) | |
| Operating Temperature | 0 ℃ ~ 40 ℃ at 10% ~ 80% humidity |
| Storage Temperature | -20 ℃ ~ 60 ℃ at 10% ~ 80% humidity |
| Certification | CE, FCC, KC |
| Power | Adaptor 12V, 5A |
| OS Support | Windows XP/Vista, Windows 7, POSReady 2009/7 |
| Dimension (W x H x D) | 280 x 78 x 355(mm), 11 x 3 x 13.9(inch) |
