VFD customer displays.
POS Customer Displays Pole & desktop, white or black color available Customer Displays, POS Peripherals, Black customer Display POS store customer Displays, Pole or Desktop type, wide view angle
View Larger

Customer Display

  • VFD customer displays.
  • • 5 x 7 dot matrix , blue-green VFD
    • Number of characters : 40 (20 columns x 2 lines)
    • Character size : H9 x W6 mm
    • Character type : Alphanumeric
Share |

  • Customer Display

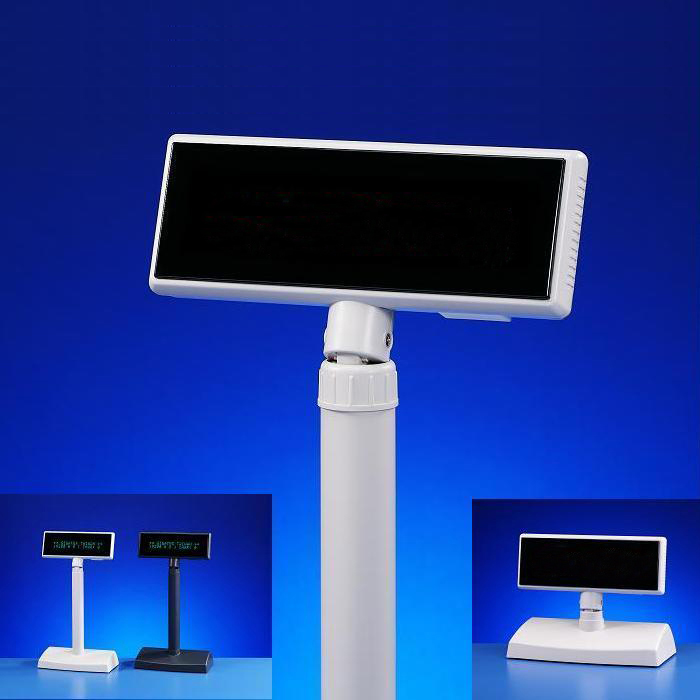

    Point of sale system Peripherals - Customer Display-DSP840


    Customer Display is an artistic design POS terminal peripheral device discrete POS applications
    The customer display can be used with ECR , POS terminal to display the purchased items, prices, amounts and changes to the customers
    DSP8940 is also capable of displaying the advertising messages or any messages controlled by the host computer.

    Features
    • Compatible with DSP800/DM-D210/CD5220
    • Provides connector for Serial Printer connection
    • 20 x 2 large font (9 x 6mm) VFD provides wide viewing angle, long life and high display quality
    • Blue-green display color is gentle to the eyes
    • Provides both Software setting and DIP Switch setting for Baudrate and Character set setting
    • 3 pieces of Support Poles available to provide 4 different heights installation
    : Low, Mid-low, Mid-high and High (182.5/312.5/427.5/557.5mm)
    • Provides good general utilities :
    • User-defined messages can be downloaded
    • Pre-saved 14 international character sets
    • Advertising messages running

    Specifications
    [Display]
    • 5 x 7 dot matrix, blue-green VFD
    • Number of characters : 40 (20 columns x 2 lines)
    • Character size : H9 x W6 mm
    • Character type : Alphanumeric
    • View area : H22.4 x W164.1 mm
    • Power supply : DC 12 V, 500 mA

    [Dimensions]
    • Display unit : 230(W) x 85(H) x 42(D) mm
    • Base stand : 235(W) x 47(H) x 115(D) mm
    • Total height : (Low) 182.5 mm (Mid-low) 312.5 mm (Mid-high) 427.5 mm (High) 557.5 mm
    • Tilt angle : up to 30 degrees
    • Horizontal rotation : 300 degrees

    [Interface]
    • RS-232 interface with Baudrate selectable 600 ~ 38400
    • USB version is available on request
    Note: The Specification is subject to change without notice.

    [Application]
    • POS Systems
    • Ticket Office
    • Post Office
    • Any message displaying

    [Available versions]

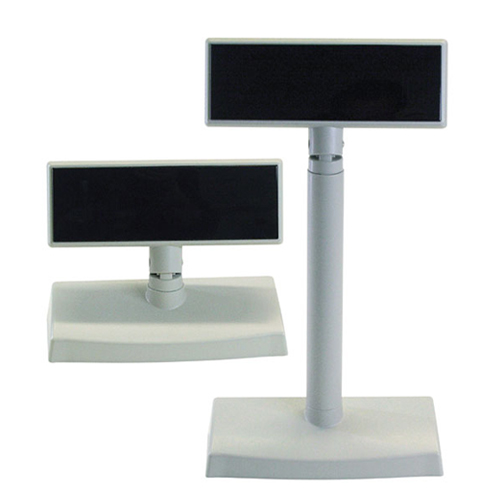

    • DSP840B - with 3 pieces Support Poles , with Base Stand

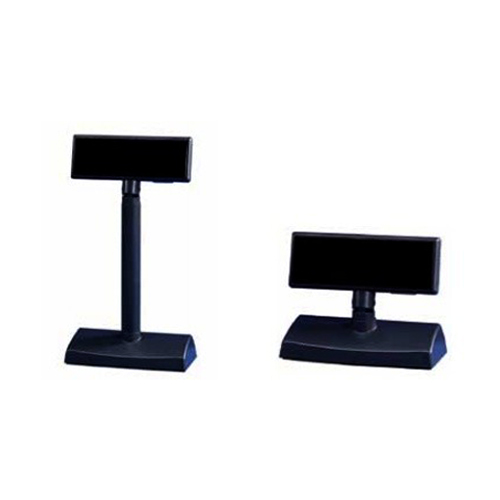

    • DSP840C - with telescopic poles , without Base Stand
    • DSP840D - with Dark Grey enclosure
