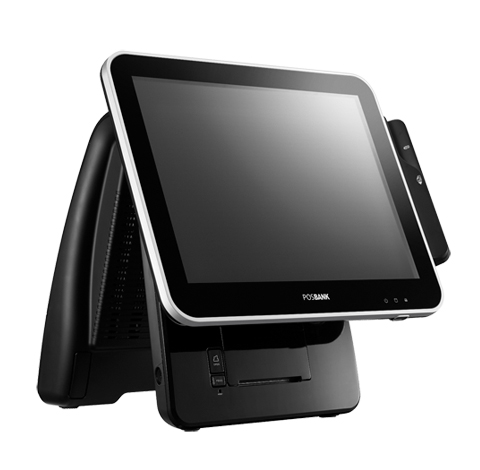

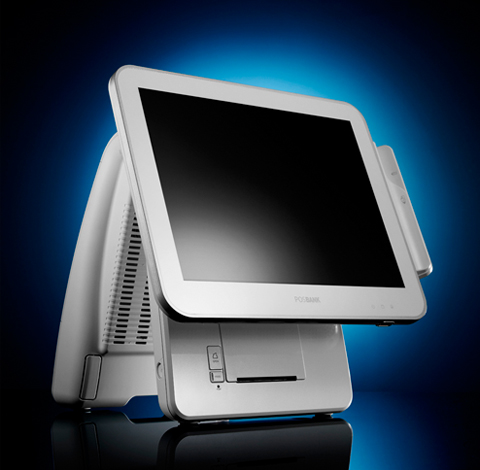

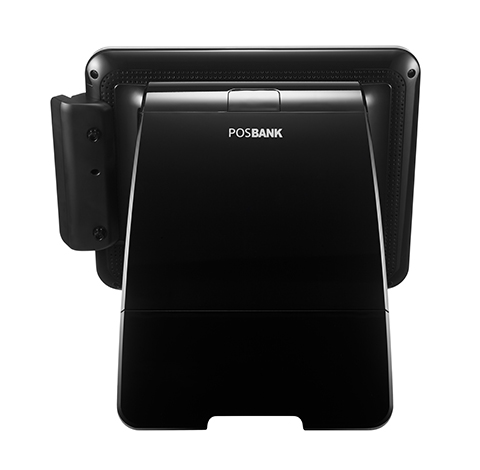

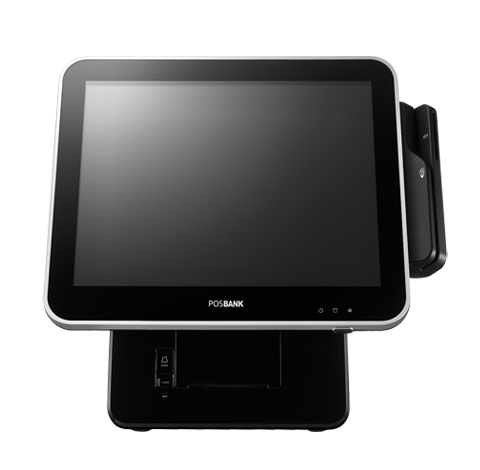

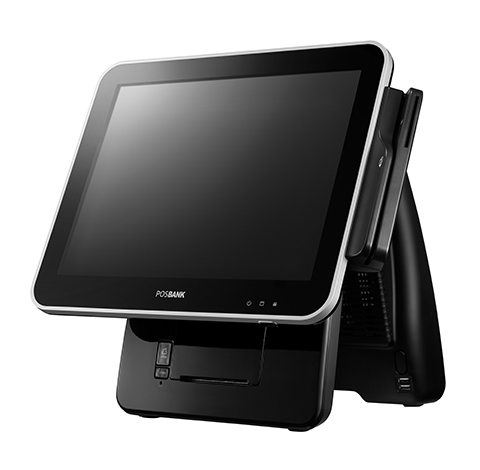

IMPREX PRIME
- High Performance Meets Stylish Look
-
High-End, Stylish and Real All-in-One POS System Performance and Energy-Efficient Intel® Processors Intel® Core™ Haswell Processors i3, i5, i7
(Fanless)
Intel® Celeron™ J1900 Quad-Core Processor
(Fanless) 15" and 17" LED LCD Display, Projective Capacitive Touch High-Speed and Jam-Free 3" Thermal Receipt Printer Integrated Multiple I/O Ports and Integrated Peripheral Options Modular Design for Easy Maintenance
Entirely New POS System
NEWThe IMPREX® PRIME is a whole new generation of high-end all-in-one POS system, featuring innovative design, stylish look, robust performance, maximum reliability, superior expandability and advanced manageability to meet today’s challenges in the retail and hospitality environments.
Highlights
- • Stylish, innovative, real all-in-one design to enhance store image.
- • Robust performance to run latest business applications.
- • Maximum reliability ensuring years of dependable operation.
- • Optional peripherals and multiple I/O ports to meet changing business requirements.
- • Advanced manageability to lower cost and minimize downtime.
-
Performance/Energy-Efficient Intel® Processors
15” & 17” LEDLCD Display, PCAP Touch
High-Speed Jam-Free Thermal Receipt Printer
Multiple I/O Ports- 2 x Side USB Ports(standard)
- 1 x Parallel Port(option)
- 1 x DVR Card(option)
Fan-less Technology & Aluminum Die-Casting Frame
Integrated Peripheral Options

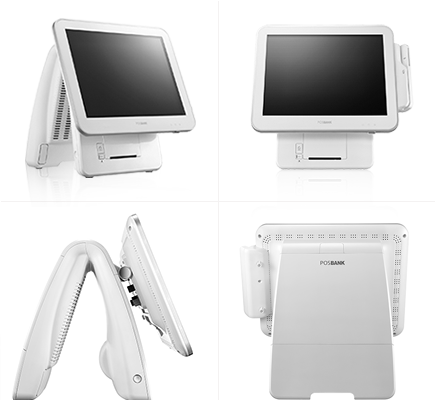

Innovative Stylish All-in-One Design
The layout of a store can be crucial, and the POS system is at the heart of it. How the POS system looks is as important as what it can do for both business owners and customers. With innovative all-in-one system, the IMPREX® PRIME does just that. There is no need to decide what to have around it. And its stylish look can enhance store image and make your business more appealing.
Performance/Energy-Efficient Intel® Processors
- Intel® Core™ Haswell processor i3, i5, i7
- Intel® Celeron™ J1900 Quad-Core
Robust Performance
Performance-optimized technology makes the IMPREX® PRIME more valuable to customers. The IMPREX® PRIME, built with high-end computing in mind, provides business owners with the processing power needed to improve business efficiency and speed up customer services.
Maximum Reliability
Reliability is a key factor that determines the life expectancy of a product. With the components optimized for longer product
life, the IMPREX® PRIME is the perfect choice even in demanding retail and hospitality segments.
Superior Expandability
With integrated POS peripherals and multiple I/O ports, the IMPREX® PRIME embodies a flexible design that can be customized to fit customer’s business environment.
Multiple I/O Ports

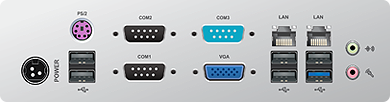

Model: J19

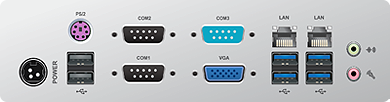

Model: QS
Advanced Manageability

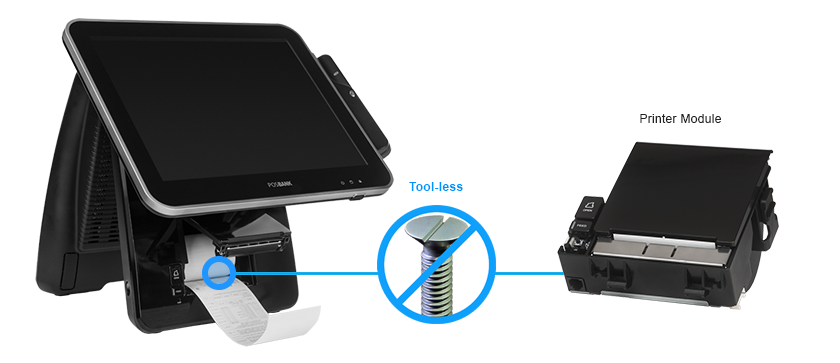

Its innovative tool-less design allows quick access to the components, enabling fast and easy service and upgrades. Built with modular technology, there is no need to send the whole system for maintenance to be serviced if a breakdown occurs.
Options |  |  | ||
|
Integrated Printer
- 3" Jam-Free Thermal Receipt Printer - 200mm/s max. Auto Cutter (Interface : Serial, USB) |
Customer Display
- 20 Columns × 2 Lines |
2nd LCD Display
- 9.7", 12.1", 15" LCD - 1024 × 768 Resolution | ||
 |  |  | ||
|
Multi-reader
- MSR (ISO 7811, Support 1 & 2& 3 Track) - SCR (EMV Level 1,2) |
Storage
- 2.5 inch SSD 128GB, HDD 500GB, HDD 1TB - 2nd 2.5 inch SSD 128GB, HDD 500GB, HDD 1TB |
Smart Battery
- 3S1P 2050mAh - 4S1P 2050mAh | ||
| General Specifications | |||
| System | |||
| CPU | Q3 | Intel® Core™ i3-4100M Processor (3M Cache, 2.50 GHz) / Fanless | |
| Q4 | Intel® Core™ i5-4210M Processor (3M Cache, up to 3.20 GHz) / Fanless | ||
| Q5 | Intel® Core™ i7-4600M Processor (4M Cache, up to 3.60 GHz) / Fanless | ||
| J19 | Intel® Celeron™ J1900 (2.0 GHz) Quad-Core Processor / Fanless | ||
| Chipset | Qs | Intel® HM87 (Co-Lay QM87) | |
| J19 | Intel® Bay Trail | ||
| Storage | Qs | SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI | |
| J19 | SATA 2 (3Gb/s) 2.5 inch SSD 64GB, Support AHCI | ||
| Memory | Qs | 2GB Standard (Max. 16GB), Type: DDR3L with 1066 or 1333 MT/s / Socket 1 x SODIMM (Max. 2 Optional) | |
| J19 | 2GB Standard (Max. 8GB), DDR3L with 1066 or 1333 MT/s / Socket 2 x SODIMM | ||
| RAID | Qs | RAID 0,1 support | |
| J19 | - | ||
| Graphics Controller | Integrated Intel GMA HD | ||
| Audio | 2 x 0.8W Stereo Speaker | ||
| LCD Display | |||
| Size/Type | 15" TFT LED Backlight | 17" TFT LED Backlight | |
| Resolution | 1024 x 768 | 1280 x 1024 | |
| Luminance | 250 cd/m² (typ.) | 300 cd/m² (typ.) | |
| Touch Screen | |||
| Type | Project Capacitive Touch | ||
| Controller Interface | USB Interface | ||
| I/O Interface | |||
| Display Port | 1 x VGA | ||
| USB Port | Qs | 8 (Rear 6 = USB 3.0 x 4 Ports, USB 2.0 x 2 Ports, Side 2 = USB 2.0 x 2 Ports) | |
| J19 | 8 (Rear 6 = USB 3.0 x 1 Port, USB 2.0 x 5 Ports, Side 2 = USB 2.0 x 2 Ports) | ||
| PS/2 Port | 1 | ||
| Serial Port | 3 (COM 1 ~ 3 with 5V/12V power output on 9pins) | ||
| Ethernet Port | 2 x RJ-45 | ||
| Audio | 1 x Line-out, 1 x Mic-in | ||
| Power DC-IN | 1 (3pins connector) | ||
| Power Requirement | |||
| Adapter Input | Adaptor 24V, 5A | ||
| OS Support | |||
| OS | Windows 7, Windows 8.1, POS Ready 7 | ||
| Mechanical & Environmental | |||
| Operating Temperature | 0°C ~ 50°C at 10% ~ 80% humidity | ||
| Storage Temperature | -20°C ~ 80°C at 10% ~ 80% humidity | ||
| Relative humidity | 10% to 90%, non-condensing | ||
| Dimensions (W x H x D) | 364 x 382 x 344(mm), 14.3 x 15 x 13.5(inch) |
392 x 410 x 346(mm), 15.4 x 16.1 x 13.6(inch) |
|
| Net Weight | 9,400g | ||
| Packing Dimension (W x H x D) | 460 x 480 x 460(mm), 18.1 x 18.8 x 18.1(inch) |
460 x 480 x 500(mm), 18.1 x 18.8 x 19.6(inch) |
|
| Packing Weight | 12,500g | ||
| Qualification | CE, FCC, KC | ||
| *Specifications may change without prior notice. | |||
| Optional Configuration | ||
| Touch Screen | 5-wired Resistive Touch Screen | |
| Integrated Printer | 3" Jam-Free Thermal Receipt Printer | |
| 200mm/sec max, Auto cutter (Interface : Serial, USB) | ||
| Storage | 2.5 inch SSD 128GB | |
| 2.5 inch HDD 500GB | ||
| 2.5 inch HDD 1TB | ||
| 2nd 2.5 inch SSD 64GB | ||
| 2nd 2.5 inch SSD 128GB | ||
| 2nd 2.5 inch HDD 500GB | ||
| 2nd 2.5 inch HDD 1TB | ||
| I/O Expansion | 1 x Parallel Port (D-SUB 25pins) | |
| 1 x Expansion Slot (mini PCIe for wireless LAN) | ||
| 1 x DVR Card (PCI 4 Channel) | ||
| 1 x Cash Drawer Port (RJ11 6pins) | ||
| Customer Display(CDP) | VFD (20 columns x 2 lines) | |
| Dual Display | 9.7" 2nd LCD (1024 x 768 resolution) | |
| 12.1" 2nd LCD (1024 x 768 resolution) | ||
| 15" 2nd LCD (1024 x 768 resolution) | ||
| Magnetic Stripe Reader | MSR: Comply with ISO 7811, Support 1 & 2 & 3 track | |
| Smart Card Reader | SCR: EMV level 1, 2 | |
| Dallas | Dallas I-button reader | |
| System Fan | 1 (40mm x 40mm, Normal type) | |
| Battery | Smart Battery: 3S1P 2050mAh | |
| Smart Battery: 4S1P 2050mAh | ||
| Color | Custom Colors Available | |
| *Specifications may change without prior notice. | ||

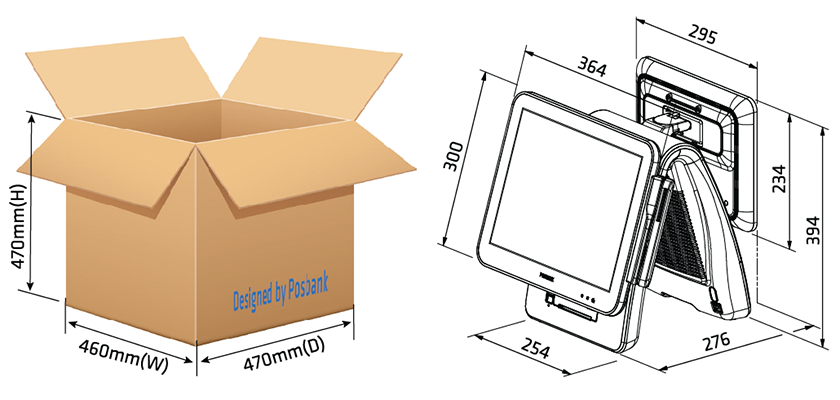

Dimension View
