Innovative and Stylish All-in-One POS System

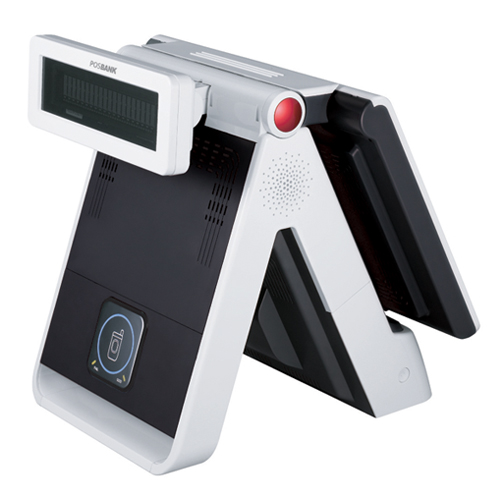

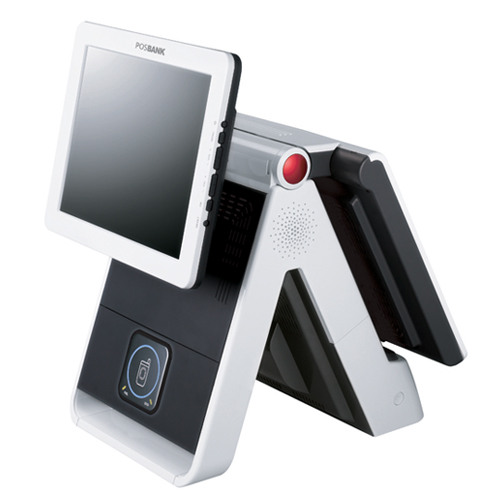

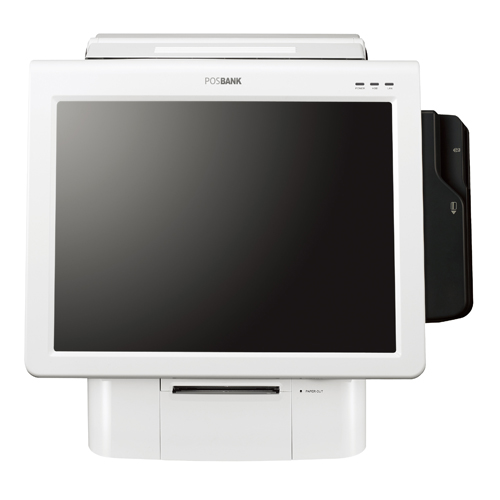

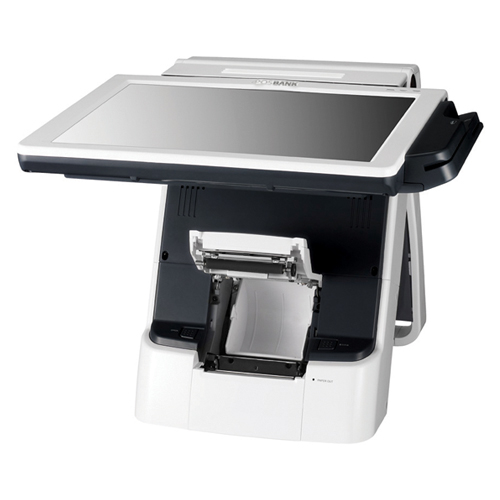

Front view of Point of Sale System IMPREX Retail POS System IMPREX POS System IMPREX w/ Customer Display Adjustable Screen Angle and Integrated Printer - IMPREX POS
View Larger

IMPREX

  • Innovative and Stylish All-in-One POS System

  •  All-in-One System with Touch Display and Receipt Printer Integrated
     Performance / Energy-Efficient Intel® Processorss
     Industrial-Grade Components
     Aluminum Die-Casting Triangular Structure
     15" LED LCD Display, 1024 x 768 Resolution
     Stylish & Chic Dual-Tone Color Design

Share |

  •

    Innovative and Stylish All-in-One POS System

    The IMPREX® is an ideal POS system for all hospitality and retail sectors. It represents Posbank’s vision of a fully integrated POS system with a modern and functional design that is unsurpassed in today’s POS industry. Engineered for optimum versatility and durability, its stylish two-tone design incorporates a blazing fast 3 inch thermal receipt printer, Magnetic Stripe Reader (MSR), Smart Card Reader (SCR), VFD 2 line customer display and 2nd LCD display (9.7", 12.1", 15") options.








    Aluminum Die-casting Frame



    Power Cooling System



    Easy Maintenance


    - Maximum support and reliability

    		 - Fanless design for heat control and Dependable operation

    - Easy replacement of HDD



    High Performance

    		 External Power Supply Unit

    Integrated Printer

    - Performance / energy-efficient Intel® processors

    		 - Reduction of internal heat production
    - Easy serviceability     		 - 3" Thermal Jam-Free Receipt Printer
    - Up 220mm/sec, auto-cutter


    Wide Range Tilt



    Customer Display

    		  2nd LCD Display

    - Viewing angle adjustable for various environments

    		 - VFD Type
    - 20 Columns x 2 Lines    		 - 9.7", 12.1", 15" LCD
    - 1024 x 768 Resolution


    Multi-reader



    - Magnetic Stripe Reader (MSR)
    - Smart Card Reader (SCR)

















    Certification of AnyShopII POS Terminal



    Qualification : CE, FCC, KC, RoHs, ISO9001, ISO14001



    * Design, features and specifications subject to change without notice. Screen images simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the Specifications tab for a complete list of features by model.

  • IMPREX® Q SERIES
    CPU uPGA988 for 2nd and 3rd Generation Intel® Core™ i7/i5/i3, Intel® Pentium, Intel® Celeron Processors
    Chipset Intel QM77 Intel HM76
    Storage SATA 3 (6Gb/s) 2.5 inch HDD or SSD (Max. 2 Optional), Support AHCI
    (SSD: 64GB or 32GB / HDD: 320GB )
    Memory DDR3-1600MHz SODIMM Default 2GB (MAX. 8GB)
    Graphic Integrated Intel GFX
    AMT Support iAMT 8.0 -
    Printer 3" thermal printer (220mm/sec max, Auto cutter)
    Display
    Resolution 15" LED Backlight TFT-LCD 250 cd/㎡ (1024 x 768 Resolution)
    Touch screen 5-wired Resistive Touch
    Internal I/O
    Parallel 1 Port (reserved for internal printer)
    USB 3 Ports (reserved for touch controller, SCR EMV card, MSR controller)
    Serial port COM 5 (reserved for cash drawer port) &
    COM 6 (reserved for MSR)
    Display port LVDS or VGA & COM 4 (reserved for CDP)
    Extension slot Mini PCIe
    Primary display 24bit LVDS
    External I/O
    USB Rear 6 (USB 3.0 x 4 ports, USB 2.0 x 2 ports) Rear 4 (USB 3.0 x 2 ports, USB 2.0 x 2 ports)
    PS/2 1 Port (reserved for Keyboard & Mouse)
    Serial port COM 1 ~ 3 with 5V/12V power output on 9pin
    LAN Gigabit Ethernet x 2 ports
    1x Intel Gigabit LAN with iAMT 8.0(Intel 82579LM)
    1x Intel Gigabit LAN with (Intel 82583V)    		 1 port x Intel Gigabit LAN with (Intel 82583V)
    Audio Realtek ALC 892 / Line-out, Mic-in
    Display port VGA x 1 port
    Options
    MSR Comply with ISO 7811, Support 1 & 2 & 3 track
    Speaker Intenral 50mm speaker (Amplified, mono)
    Camera Camera
    Side USB 2 Ports (USB 2.0 x 2 ports)
    SCR EMV level 1
    Dallas Dallas I-button reader
    Customer display VFD type (20 x 2)
    2nd LCD 9.7", 12.1", 15" LCD (1024 x 768 Resolution)
    2nd storage 2nd 2.5 inch HDD / SSD storage
    Cash drawer port 1 Port
    Parallel port 1 Port
    WiFi Mini PCIe for wireless LAN
    Operating Temperature 0 ℃ ~ 40 ℃ at 10% ~ 80% humidity
    Storage Temperature -20 ℃ ~ 60 ℃ at 10% ~ 80% humidity
    Certification CE, FCC, KC
    Power Adaptor 24V, 6A
    OS Support Windows 7, Windows 8, POS Ready 7
    Dimension (W x H x D) 405 x 351 x 345(mm), 15.9 x 13.8 x 13.5(inch)



    IMPREX® D25
    CPU Intel Atom processor D2550 (1MB Cache, 1.86 GHz, Dual Core for Cedarview-D)
    Chipset Intel NM10
    Storage SATA 2 (3Gb/s) 2.5 inch HDD or SSD (Max. 2 Optional), Support AHCI
    (SSD: 64GB or 32GB / HDD: 320GB )
    Memory DDR3-1066MHz SODIMM 2GB (MAX. 4GB)
    Graphic Integrated Intel GMA HD 3650
    Printer 3" thermal printer (220mm/sec max, Auto cutter)
    Display
    Resolution 15" LED Backlight TFT-LCD 250 cd/㎡ (1024 x 768 Resolution)
    Touch screen 5-wired Resistive Touch
    Internal I/O
    Parallel 1 Port (reserved for internal printer)
    USB 3 Ports (reserved for touch controller, SCR EMV card, MSR controller)
    Serial port COM 5 (reserved for cash drawer port) &
    COM 6 (reserved for MSR)
    Display port VGA & COM 4 (reserved for CDP)
    Extension slot Mini PCIe
    Primary display 24bit LVDS
    External I/O
    USB Rear 4 (USB 2.0 x 4 ports)
    PS/2 1 Port (reserved for Keyboard & Mouse)
    Serial port COM 1 ~ 3 with 5V/12V power output on 9pin
    LAN Realtek RTL 8111E Ethernet Controller
    Audio Realtek ALC 892 / Line-out, Mic-in
    Display port VGA x 1 port
    Options
    MSR Comply with ISO 7811, Support 1 & 2 & 3 track
    Speaker Intenral 50mm speaker (Amplified, mono)
    Camera Camera
    Side USB 2 Ports (USB 2.0 x 2 ports)
    SCR EMV level 1
    Dallas Dallas I-button reader
    Customer display VFD type (20 x 2)
    2nd LCD 9.7", 12.1", 15" LCD (1024 x 768 Resolution)
    2nd storage 2nd 2.5 inch HDD / SSD storage
    Cash drawer port 1 Port
    Parallel port 1 Port
    WiFi Mini PCIe for wireless LAN
    Operating Temperature 0 ℃ ~ 40 ℃ at 10% ~ 80% humidity
    Storage Temperature -20 ℃ ~ 60 ℃ at 10% ~ 80% humidity
    Certification CE, FCC, KC
    Power Adaptor 24V, 6A or 12V, 5A (none printer type)
    OS Support Windows XP/Vista, Windows 7, POS Ready 2009/7
    Dimension (W x H x D) 405 x 351 x 345(mm), 15.9 x 13.8 x 13.5(inch)
    *Specifications may differ by region and change without prior notice.
