POSBANK - Point-of-sale total solution provider

Power and Style at Your Space™
View Larger

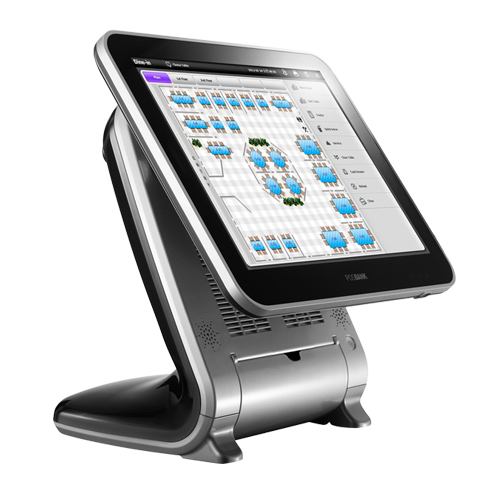

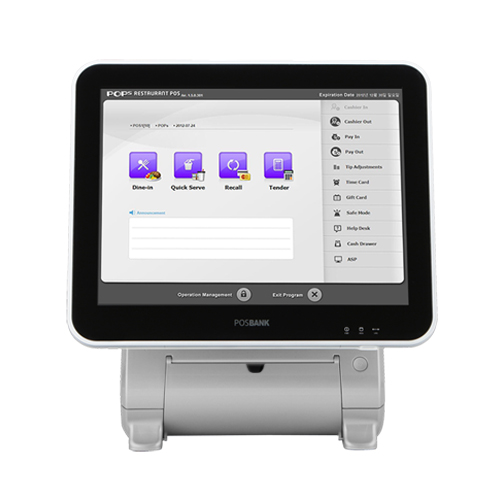

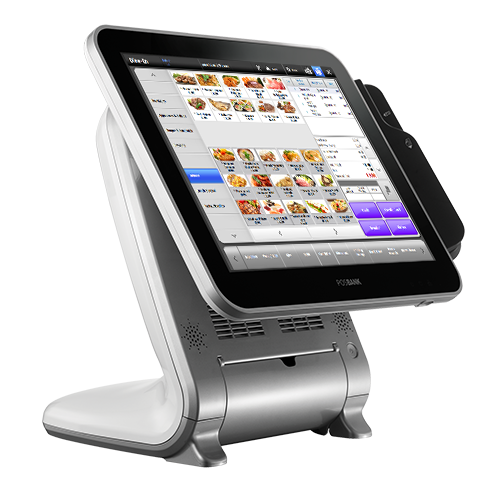

ANYSHOP PRIME

  • Power and Style at Your Space™
  • High-End POS System with Alluring Style
     Robust Performance with the 4th Generation Intel® Processors
     Bezel-free True-Flat 15" and 17" LED LCD Display with PCAP Touch
     Tool-less Design for Rapid installation and Easy Maintenance
     Color Customization
Share |
  • New Document



    • Power and Style at Your Space™

    • The ANYSHOP® PRIME is a high-end touch screen POS system that delivers robust performance, alluring style and easy maintenance for various market segments.

    • Robust Performance

    • The ANYSHOP® PRIME employs the 4th generation Intel® Core™ Haswell i3, i5, i7 and Intel® Celeron™ quad-core J1900 processors. They allow the latest customer-focused applications to run with ease. The ANYSHOP® PRIME helps serve your customers faster.
    • Performance/Energy-Efficient Intel® Processors
      - Intel® Core™ Haswell processor i3, i5, i7
      - Intel® Celeron™ J1900 Quad-Core

    • Alluring Style

    • Sleek and elegant design of the ANYSHOP® PRIME can enhance store image and make your business look more attractive. Customizable colors can improve brand identity and be a key element of differentiation.





























    • Advanced Display

    • The bezel-free 15" and 17" LED LCD display provide improved clarity and brightness, allowing for accurate transactions. Built with PCAP touch technology, it is activated with both fingers and gloves. Make it easy for you staffs.
    • Bezel-free True-Flat 15" and 17" LED LCD Display with PCAP Touch

    • Tool-less Design

    • The tool-less design of the ANYSHOP® PRIME delivers rapid installation. And its thumbscrews and modular technology enable service, maintenance and upgrade with ease. Save your time and reduce your cost.

    • Uninterruptible Power Supply

    • During a power outage, an optional smart battery provides emergency electricity to keep the POS system running and protect against data loss or system damage. Get additional security and peace of mind with UPS function.

    Options






    Customer Display
    - 20 Columns × 2 Lines

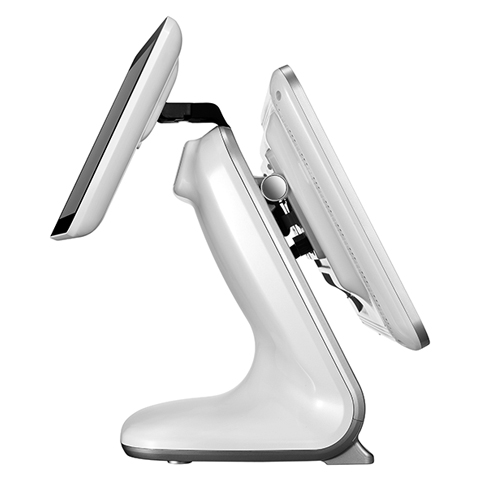

    		2nd LCD Display
    - 9.7", 12.1", 15" LCD
    - 1024 × 768 Resolution
    		Multi-reader
    - MSR (ISO 7811, Support 1 & 2& 3 Track)
    - SCR (EMV Level 1,2)









    Storage
    - 2.5 inch SSD 128GB, HDD 500GB, HDD 1TB
    - 2nd 2.5 inch SSD 128GB, HDD 500GB, HDD 1TB

    		Smart Battery
    - 3S1P 2050mAh
    - 4S1P 2050mAh






  • General Specifications
    System
    CPU Q3 Intel® Core™ i3-4100M Processor (3M Cache, 2.50 GHz) / Fanless
    Q4 Intel® Core™ i5-4210M Processor (3M Cache, up to 3.20 GHz) / Fanless
    Q5 Intel® Core™ i7-4600M Processor (4M Cache, up to 3.60 GHz) / Fanless
    J19 Intel® Celeron™ J1900 (2.0 GHz) Quad-Core Processor / Fanless
    Chipset Qs Intel® HM87 (Co-Lay QM87)
    J19 Intel® Bay Trail
    Storage Qs SATA 3 (6Gb/s) 2.5 inch SSD 64GB, Support AHCI
    J19 SATA 2 (3Gb/s) 2.5 inch SSD 64GB, Support AHCI
    Memory Qs 2GB Standard (Max. 16GB), DDR3L with 1066 or 1333 MT/s / Socket 1 x SODIMM (Max. 2 Optional)
    J19 2GB Standard (Max. 8GB), DDR3L with 1066 or 1333 MT/s / Socket 2 x SODIMM
    RAID Qs RAID 0,1 support
      J19 -
    Graphics Controller   Integrated Intel GMA HD
    Audio   2 x 0.8W Stereo Speaker
    LCD Display
    Size/Type   15" TFT LED Backlight 17" TFT LED Backlight
    Resolution   1024 x 768 1280 x 1024
    Luminance   250 cd/m² (typ.)  300 cd/m² (typ.)
    Touch Screen
    Type   Project Capacitive Touch
    Controller Interface   USB Interface
    I/O Interface
    Display Port   1 x VGA
    USB Port Qs 8 (Rear 6 = USB 3.0 x 4 Ports, USB 2.0 x 2 Ports, Side 2 = USB 2.0 x 2 Ports)
    J19 8 (Rear 6 = USB 3.0 x 1 Port, USB 2.0 x 5 Ports, Side 2 = USB 2.0 x 2 Ports)
    PS/2 Port   1
    Serial Port   3 (COM 1 ~ 3 with 5V/12V power output on 9pins)
    Ethernet Port   2 x RJ-45
    Audio   1 x Line-out, 1 x Mic-in
    Power DC-IN Qs 1 (3pins connector)
    J19 1 (4pins connector)
    Power Requirement
    Adapter Input Qs Adaptor 24V, 5A
    J19 Adaptor 12V, 5A
    OS Support
    OS   Windows 7, Windows 8.1, POS Ready 7
    Mechanical & Environmental
    Operating Temperature   0℃ ~ 50℃ at 10% ~ 90% humidity
    Storage Temperature   -20℃ ~ 80℃ at 10% ~ 90% humidity
    Relative humidity   10% to 90%, non-condensing
    Dimensions (W x H x D)   364 x 382 x 344(mm), 14.3 x 15 x 13.5(inch) 392 x 410 x 346(mm), 15.4 x 16.1 x 13.6(inch)
    Net Weight   7,500g
    Packing Dimension (W x H x D)   460 x 480 x 460(mm), 18.1 x 18.8 x 18.1(inch) 460 x 480 x 500(mm), 18.1 x 18.8 x 19.6(inch)
    Packing Weight   10,000g
    Qualification   CE, FCC, KC
      *Specifications may change without prior notice.





    Optional Configuration
    Touch Screen   5-wired Resistive Touch Screen
    Storage   2.5 inch SSD 128GB
    2.5 inch HDD 500GB
    2.5 inch HDD 1TB
    2nd 2.5 inch SSD 64GB
    2nd 2.5 inch SSD 128GB
    2nd 2.5 inch HDD 500GB
    2nd 2.5 inch HDD 1TB
    I/O Expansion   1 x Cash Drawer Port (RJ11 6pins)
    Customer Display(CDP)   VFD (20 columns x 2 lines)
    Dual Display   9.7" 2nd LCD (1024 x 768 resolution)
    12.1" 2nd LCD (1024 x 768 resolution)
    15" 2nd LCD (1024 x 768 resolution)
    Magnetic Stripe Reader   MSR: Comply with ISO 7811, Support 1 & 2 & 3 track
    Smart Card Reader   SCR: EMV level 1, 2
    Dallas   Dallas I-button Reader
    Battery   Smart Battery: 3S1P 2050mAh
    Smart Battery: 4S1P 2050mAh
    Color   Custom Colors Available
      *Specifications may change without prior notice.

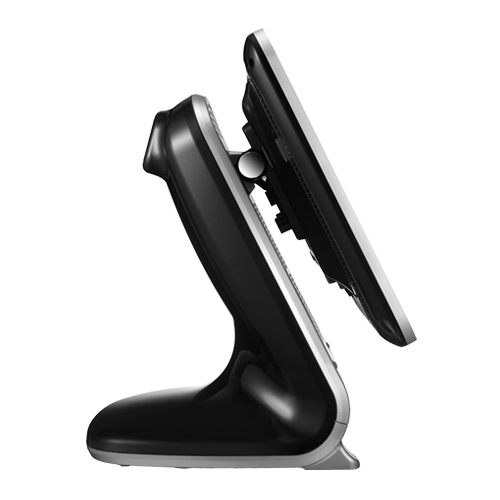

    Dimension View
