POSBANK - Point-of-sale total solution provider

Compact, Stylish and Easy-to-Install

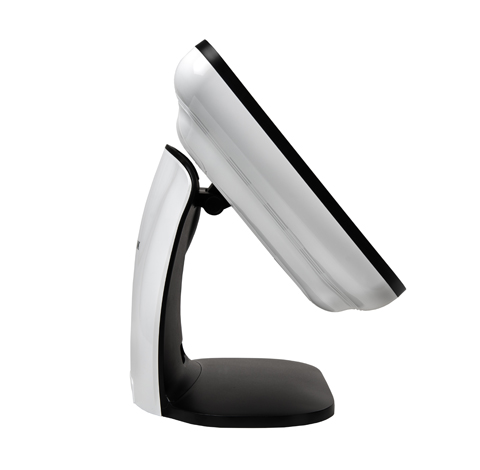

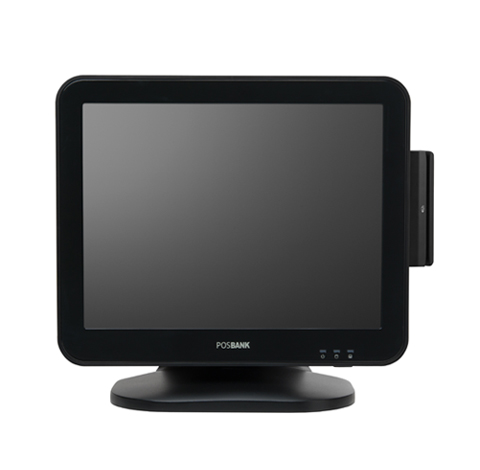

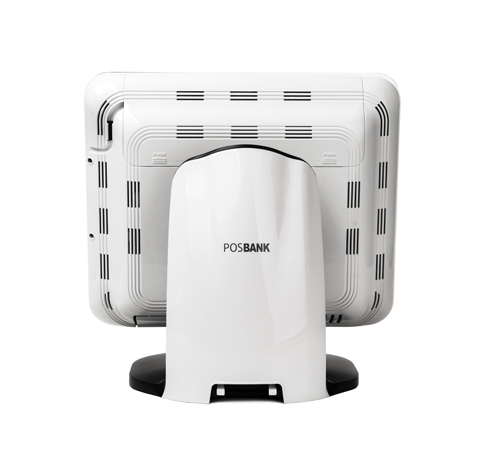

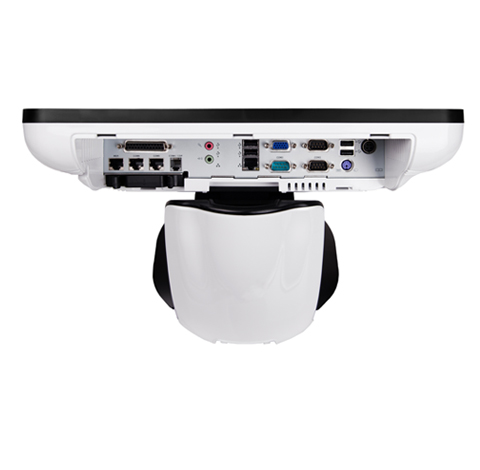

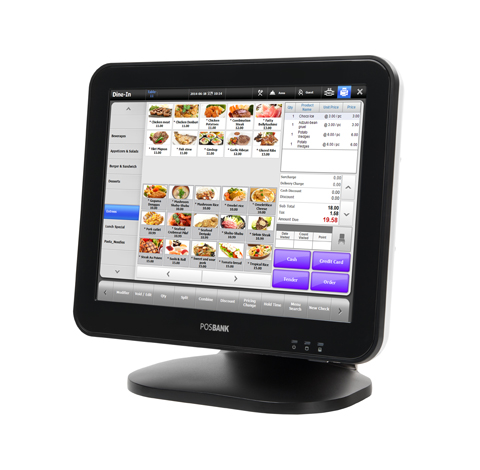

Restaurant, Retail Shop POS(Point-of-sale) Terminal BLUO - Main view Restaurant, Retail Shop POS(Point-of-sale) Terminal BLUO - Front view Restaurant, Retail Shop POS(Point-of-sale) Terminal BLUO - back view - cover open Restaurant, Retail Shop POS(Point-of-sale) Terminal BLUO - 12inch dual monitor view
View Larger

BLUO

  • Compact, Stylish and Easy-to-Install
  •  Compact Design
     Performance / Energy-Efficient Intel® processors
     Secondary HDD or SSD Drive
     System Expansion
     Easy Installation and Maintenance
     Onboard UPS technology to Prevent Data loss from Power Outages

Share |

  •


    Compact and Easy-to-Install


    The BLUO is a compact POS System designed to fit into any store environments. Its practical and unique design is a perfect combination of form and function. It delivers optimum convenience by giving easy access to I/O ports on the upper part of the monitor. The BLUO offers superior cable management by putting system cables inside its back cover.











    Compact Design Multi-reader
    Sturdy and Stable Stand

    - Takes up less counter space - Magnetic Stripe Reader (MSR)
    - Smart Card Reader (SCR)    		- Cable management available

    Customer Display 2nd LCD Display LCD Display

    - VFD Type
    - 20 Columns x 2 Lines    		 - 9.7", 12.1" LCD
    - 1024 x 768 Resolution



    Certification of AnyShopII POS Terminal



    Certification and Compliance: CE, FCC, KC, RoHs, ISO9001, ISO14001

    * Design, features and specifications subject to change without notice. Screen images simulated and/or dramatized. Some features in videos may not be available on all models. Please refer to the Specifications tab for a complete list of features by model.

  • BLUO Q SERIES
    CPU uPGA988 for 2nd and 3rd Generation Intel® Core™ i7/i5/i3, Intel® Pentium, Intel® Celeron Processors
    Chipset Intel QM77 Intel HM76
    Storage SATA 3 (6Gb/s) 2.5 inch HDD or SSD (Max. 2 Optional), Support AHCI
    (SSD: 64GB or 32GB / HDD: 320GB )
    Memory DDR3-1600MHz SODIMM Default 2GB (MAX. 8GB)
    Graphic Integrated Intel GFX
    AMT Support iAMT 8.0 -
    Display
    Resolution 15" LED Backlight TFT-LCD 250 cd/㎡ (1024 x 768 resolution)
    Touch screen 5-wired Resistive Touch
    Internal I/O
    USB 3 Ports (reserved for touch controller, SCR EMV card, camera and MSR controller)
    Serial port COM 5 (reserved for cash drawer port) & COM 6 (reserved for MSR)
    Display port LVDS or VGA & COM 4 (reserved for CDP)
    Extension slot Mini PCIe
    Primary display 24bit LVDS
    External I/O
    USB Rear 6 (USB 3.0 x 4 ports, USB 2.0 x 2 ports) Rear 4 (USB 3.0 x 2 ports, USB 2.0 x 2 ports)
    PS/2 1 Port (reserved for Keyboard & Mouse)
    Serial port COM 1 ~ 3 with 5V/12V power output on 9pin
    LAN Gigabit Ethernet x 2 ports
    1x Intel Gigabit LAN with iAMT 8.0 (Intel 82579LM)
    1x Intel Gigabit LAN with (Intel 82583V)    		 1 port x Intel Gigabit LAN with (Intel 82583V)
    Audio Realtek ALC 892 / Line-out, Mic-in
    Display port VGA x 1 port
    Options
    MSR Comply with ISO 7811, Support 1 & 2 & 3 track
    USB 2 Ports (USB 2.0)
    Serial port COM5 (RJ45, shared with cash drawer port) & COM6(RJ45, shared with MSR)
    SCR EMV level 1
    Dallas Dallas I-button reader
    Customer display VFD type (20 x 2)
    2nd LCD 9.7" LCD or 12.1" LCD (1024 x 768 resolution)
    Cash drawer port 1 Port
    Parallel port 1 Port
    WiFi Mini PCIe for wireless LAN
    Operating Temperature 0 ℃ ~ 40 ℃ at 10% ~ 80% humidity
    Storage Temperature -20 ℃ ~ 60 ℃ at 10% ~ 80% humidity
    Certification CE, FCC, KC
    Power Adaptor 24V, 6A
    OS Support Windows 7, Windows 8, POSReady 7
    Dimension (W x H x D) 364 x 300 x 227(mm), 14.3 x 11.8 x 8.9(inch)


    BLUO D25
    CPU Intel Atom Processor D2550 (1MB Cache, 1.86 GHz, Dual Core for Cedarview-D)
    Chipset Intel NM10
    Storage SATA 2 (3Gb/s) 2.5 inch HDD or SSD (Max. 2 Optional), Support AHCI
    (SSD: 64GB or 32GB / HDD: 320GB )
    Memory DDR3-1066MHz SODIMM 2GB (MAX. 4GB)
    Graphic Integrated Intel GMA HD 3650
    Display
    Resolution 15" LED Backlight TFT-LCD 250 cd/㎡ (1024 x 768 Resolution)
    Touch screen 5-wired Resistive Touch
    Internal I/O
    USB 3 Ports (reserved for touch controller, SCR EMV card, camera and MSR controller)
    Serial port COM 5 (reserved for cash drawer port) & COM 6 (reserved for MSR)
    Display port VGA & COM 4 (reserved for CDP)
    Extension slot Mini PCIe
    Primary display 24bit LVDS
    External I/O
    USB Rear 4 (USB 2.0 x 4 ports)
    PS/2 1 Port (reserved for Keyboard & Mouse)
    Serial port COM 1 ~ 3 with 5V/12V power output on 9pin
    LAN Realtek RTL 8111E Ethernet Controller
    Audio Realtek ALC 892 / Line-out, Mic-in
    Display port VGA x 1 port
    Options
    MSR Comply with ISO 7811, Support 1 & 2 & 3 track
    USB 2 Ports (USB 2.0)
    Serial port COM5 (RJ45, shared with cash drawer port) & COM6(RJ45, shared with MSR)
    SCR EMV level 1
    Dallas Dallas I-button reader
    Customer display VFD type (20 x 2)
    2nd LCD 9.7", 12.1" LCD (1024 x 768 Resolution)
    Cash drawer port 1 Port
    Parallel port 1 Port
    WiFi Mini PCIe for wireless LAN
    Operating Temperature 0 ℃ ~ 40 ℃ at 10% ~ 80% humidity
    Storage Temperature -20 ℃ ~ 60 ℃ at 10% ~ 80% humidity
    Certification CE, FCC, KC
    Power Adaptor 12V, 5A
    OS Support Windows XP/Vista, Windows 7, POSReady 2009/7
    Dimension (W x H x D) 364 x 300 x 227(mm), 14.3 x 11.8 x 8.9(inch)
    *Specifications may differ by region and change without prior notice.
